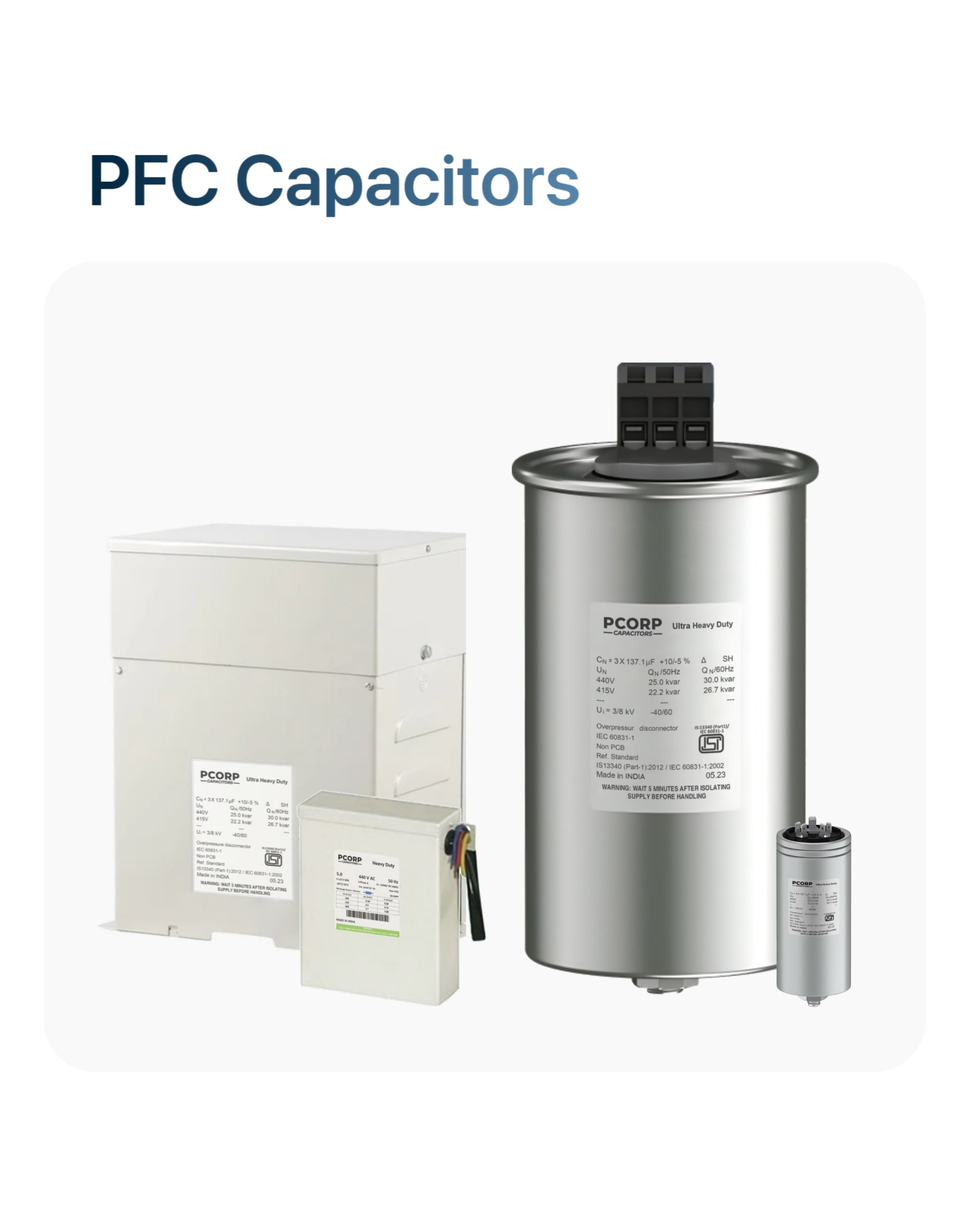

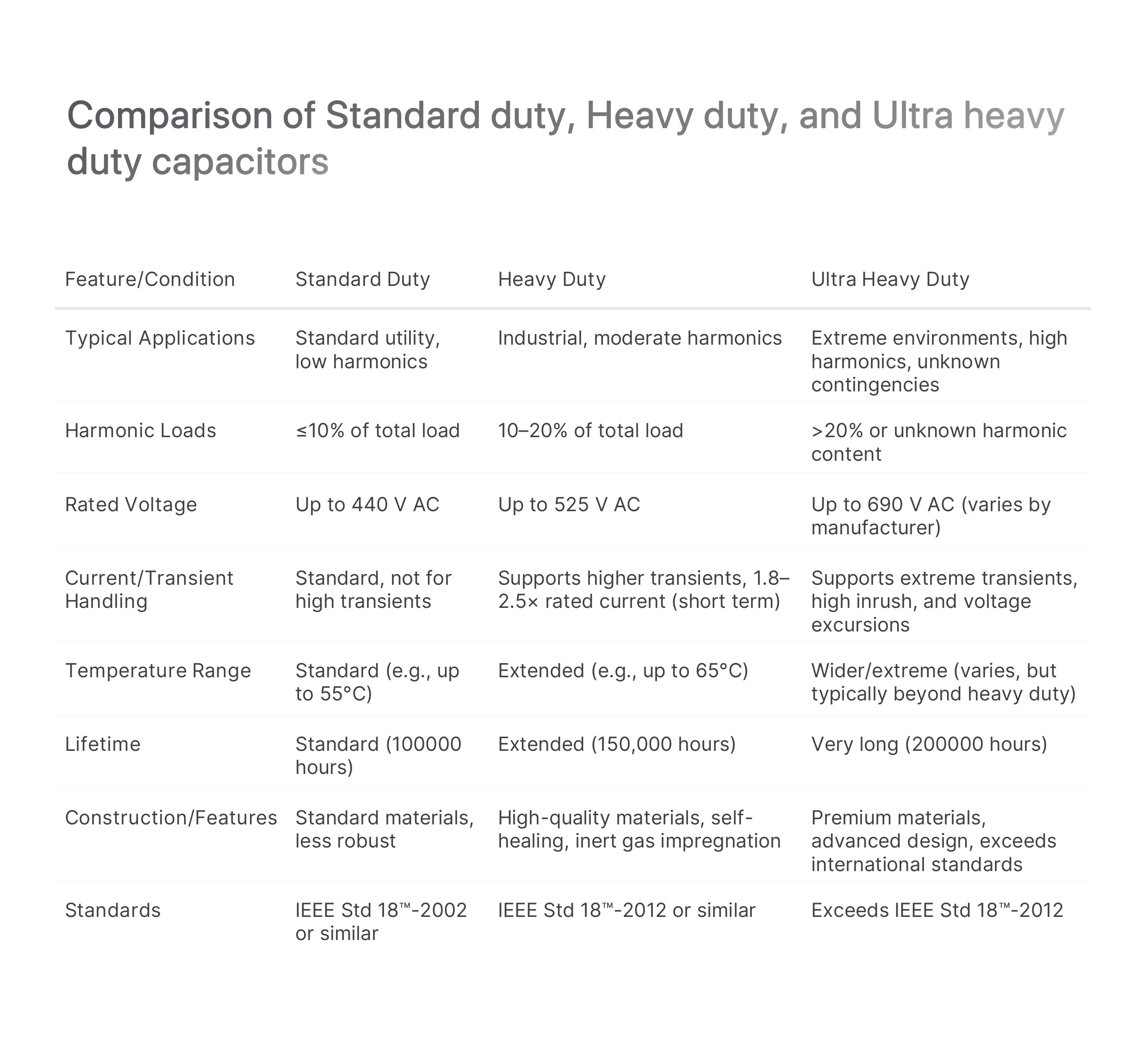

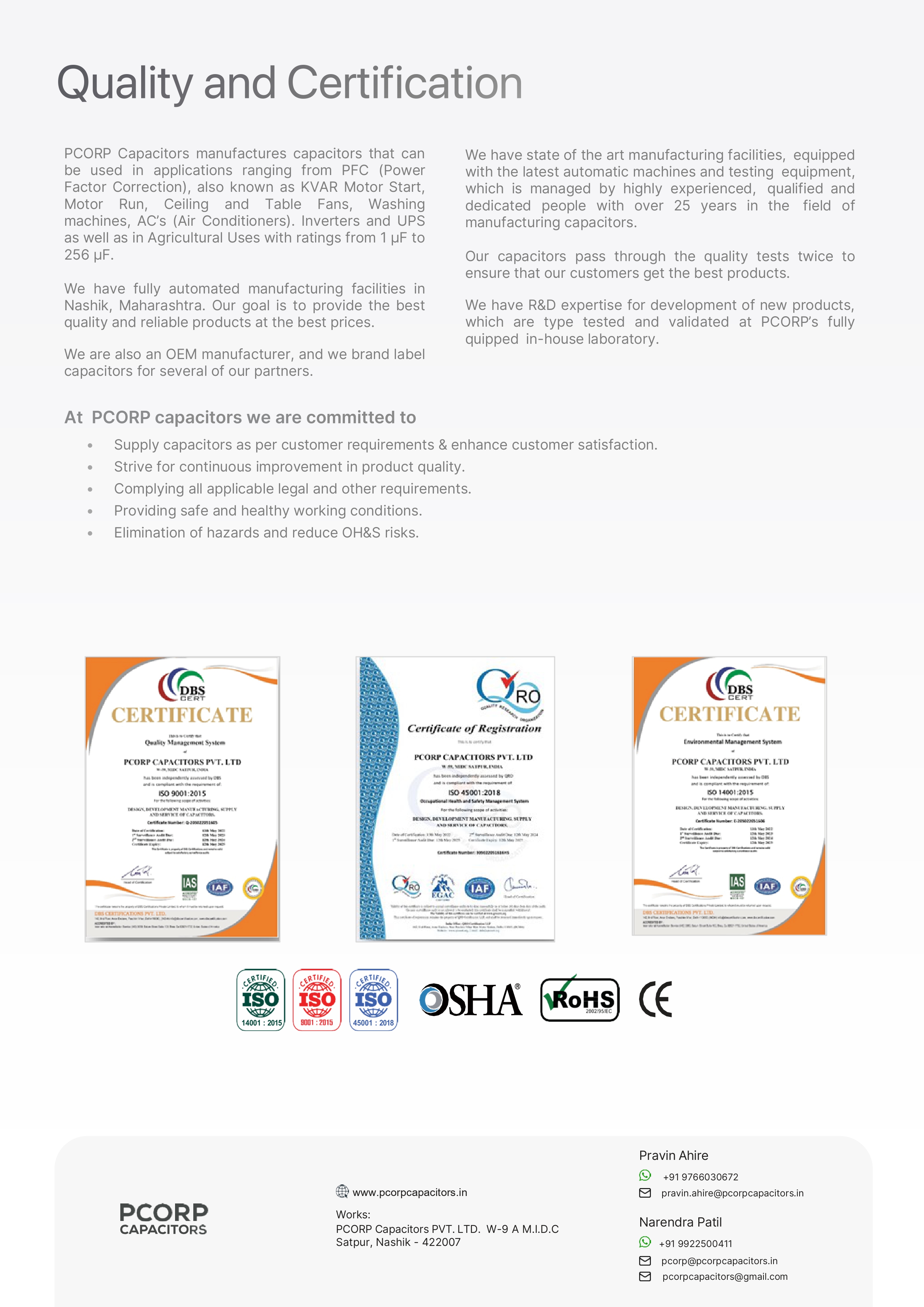

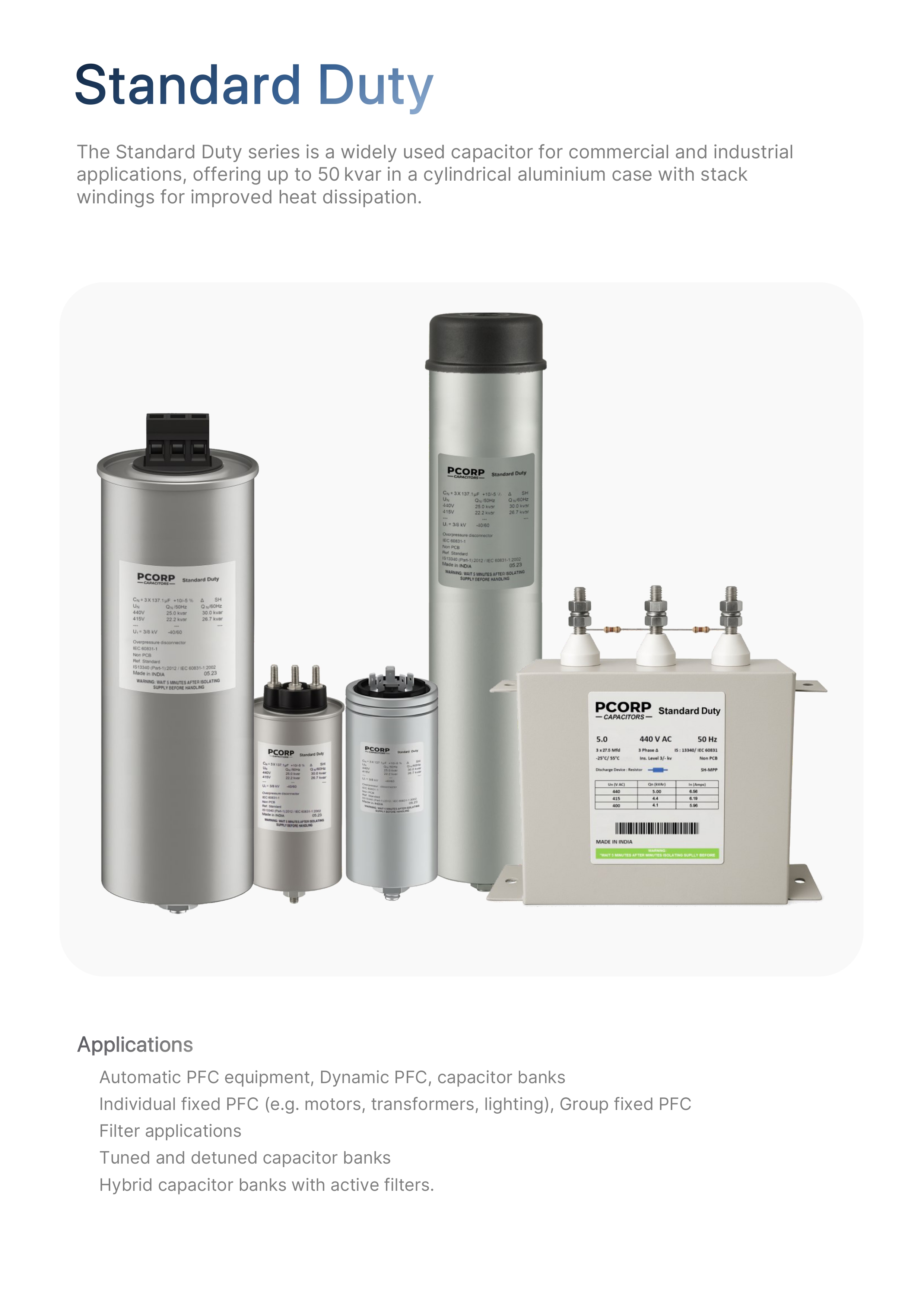

PCORP Capacitors: Power Factor Correction (PFC) Capacitor images PCORP Capacitors: Power Factor Correction (PFC) Capacitor Quality certificates information. PCORP Quality & Certifications: Learn about PCORP Capacitors' manufacturing capabilities for PFC, motor start/run, fans, washing machines, ACs, inverters, UPS, and agricultural applications. Discover our automated Nashik facility, OEM services, and commitment to quality and customer satisfaction, with certifications including ISO 9001:2015, ISO 45001:2018, and ISO 14001:2015 Comparison of standard duty, heavy duty, and ultra heavy duty capacitors. When they should be used, their applications, for which type of harmonic loads, temperature, lifetime, construction standards rated voltage

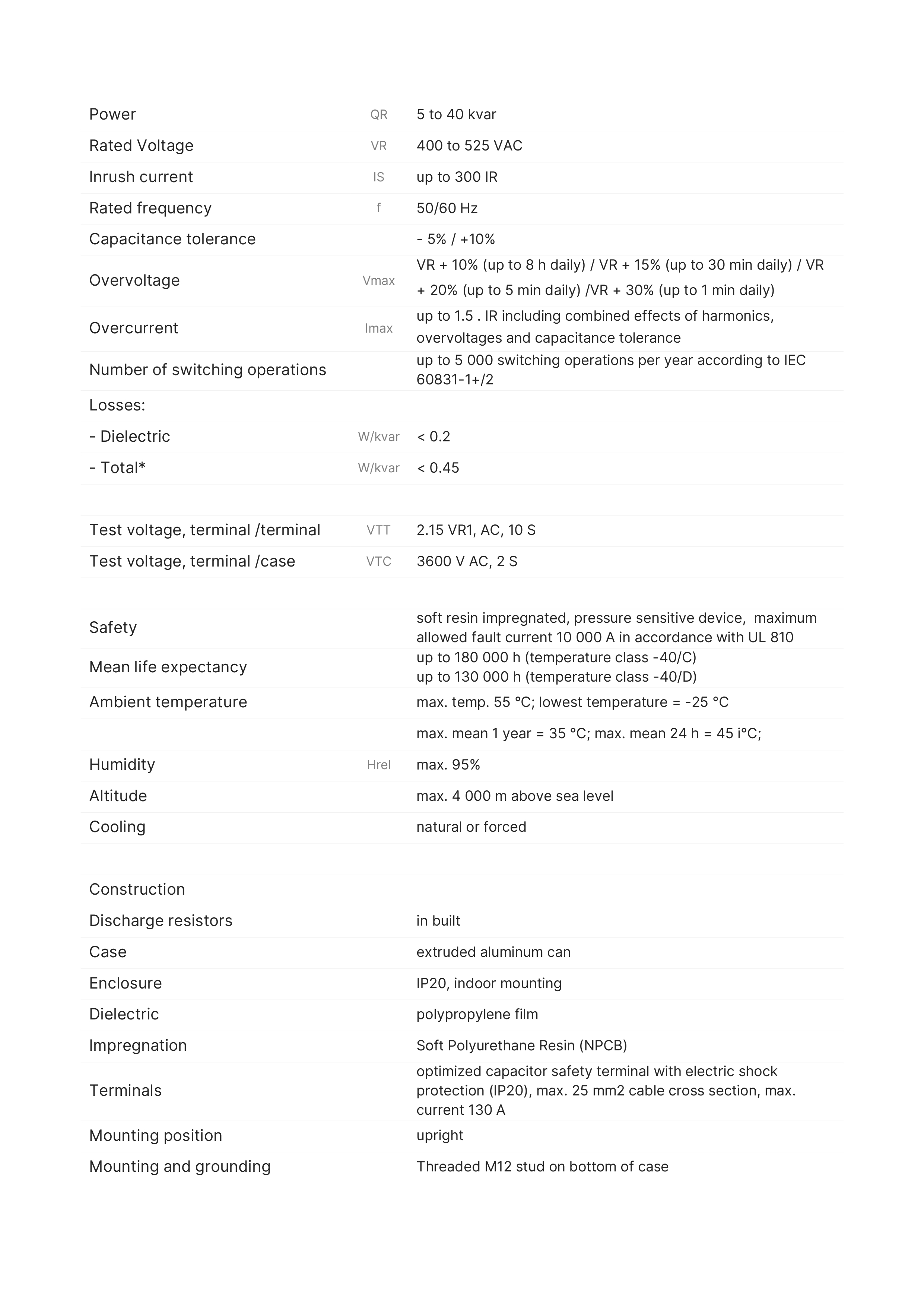

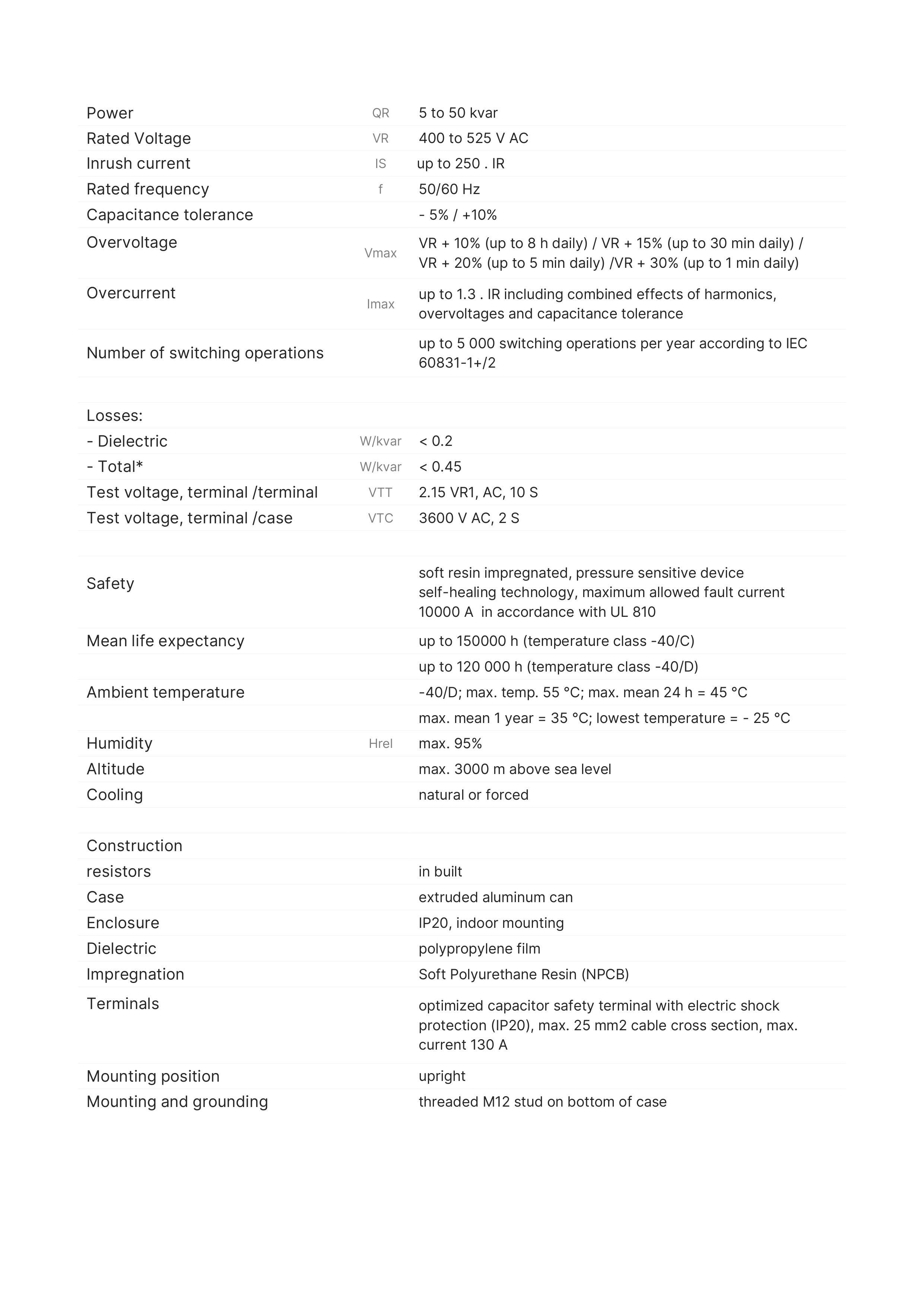

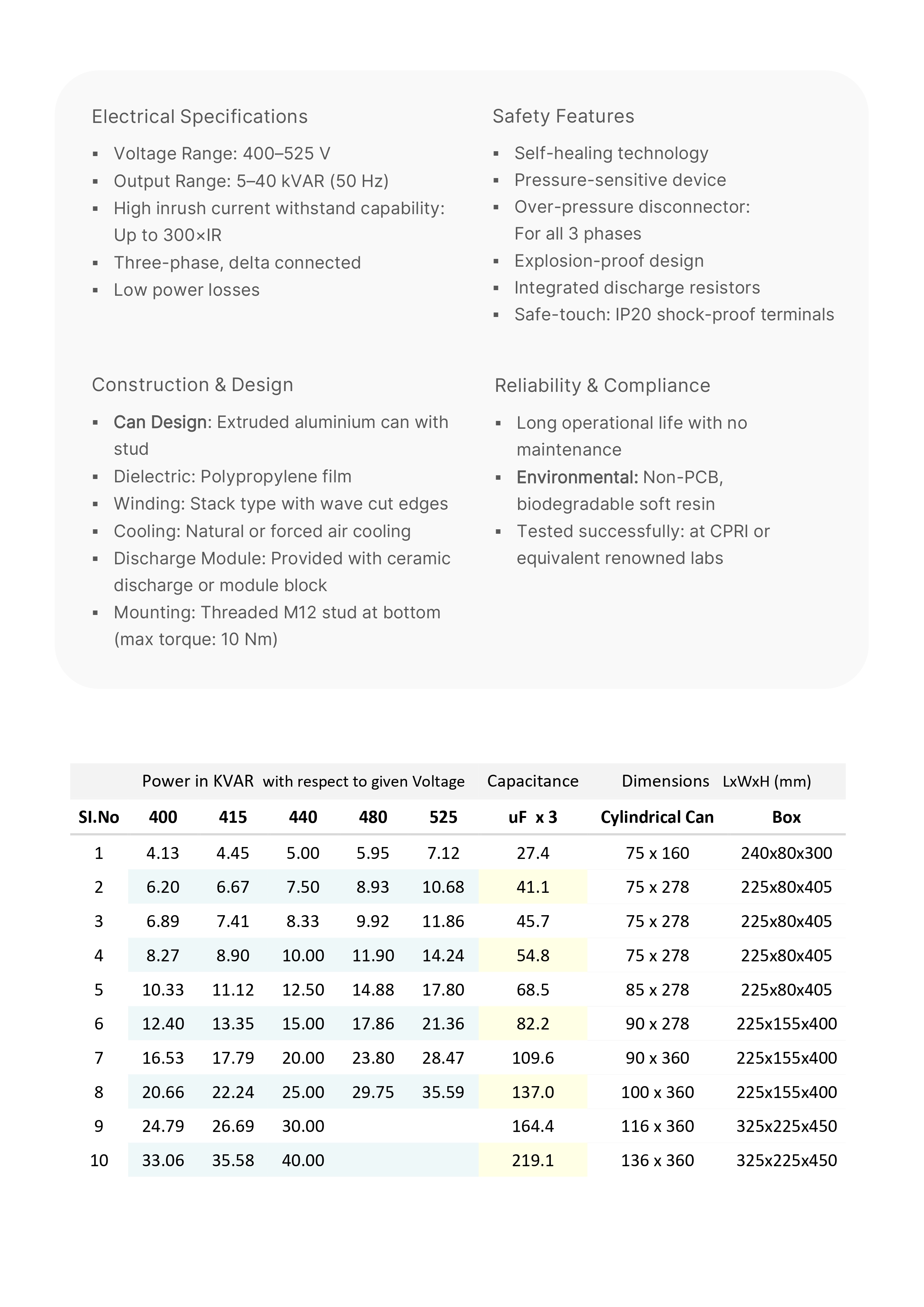

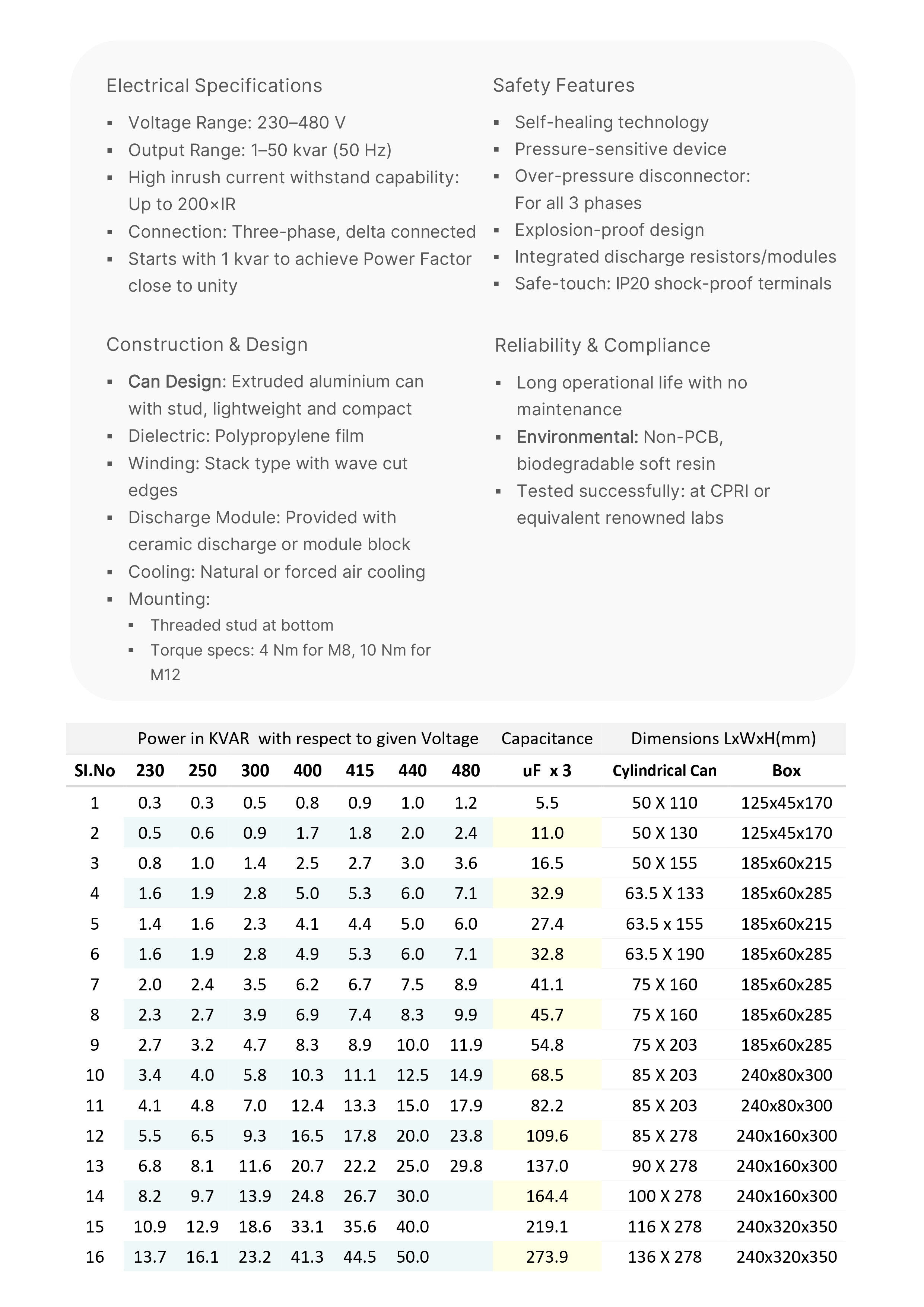

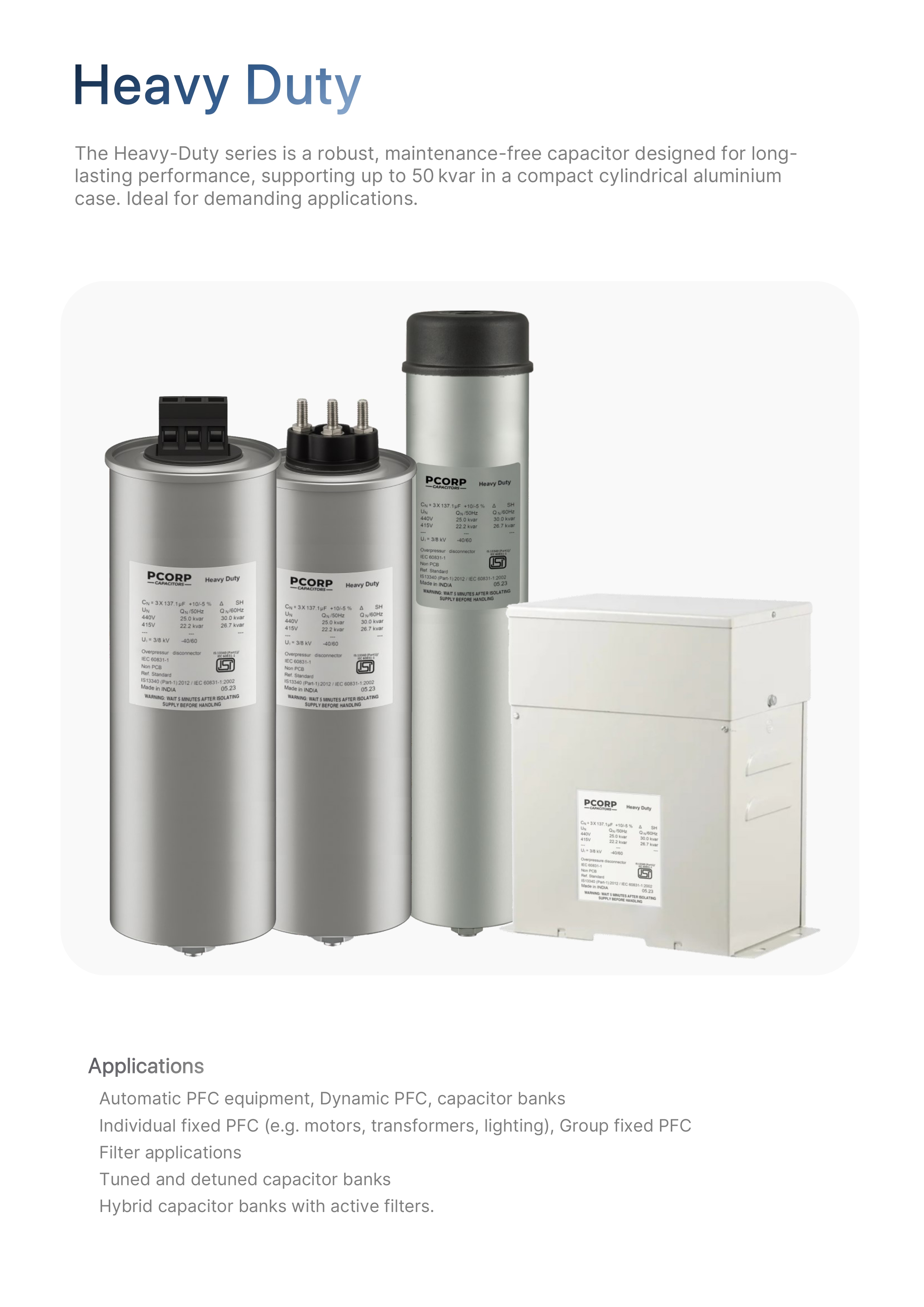

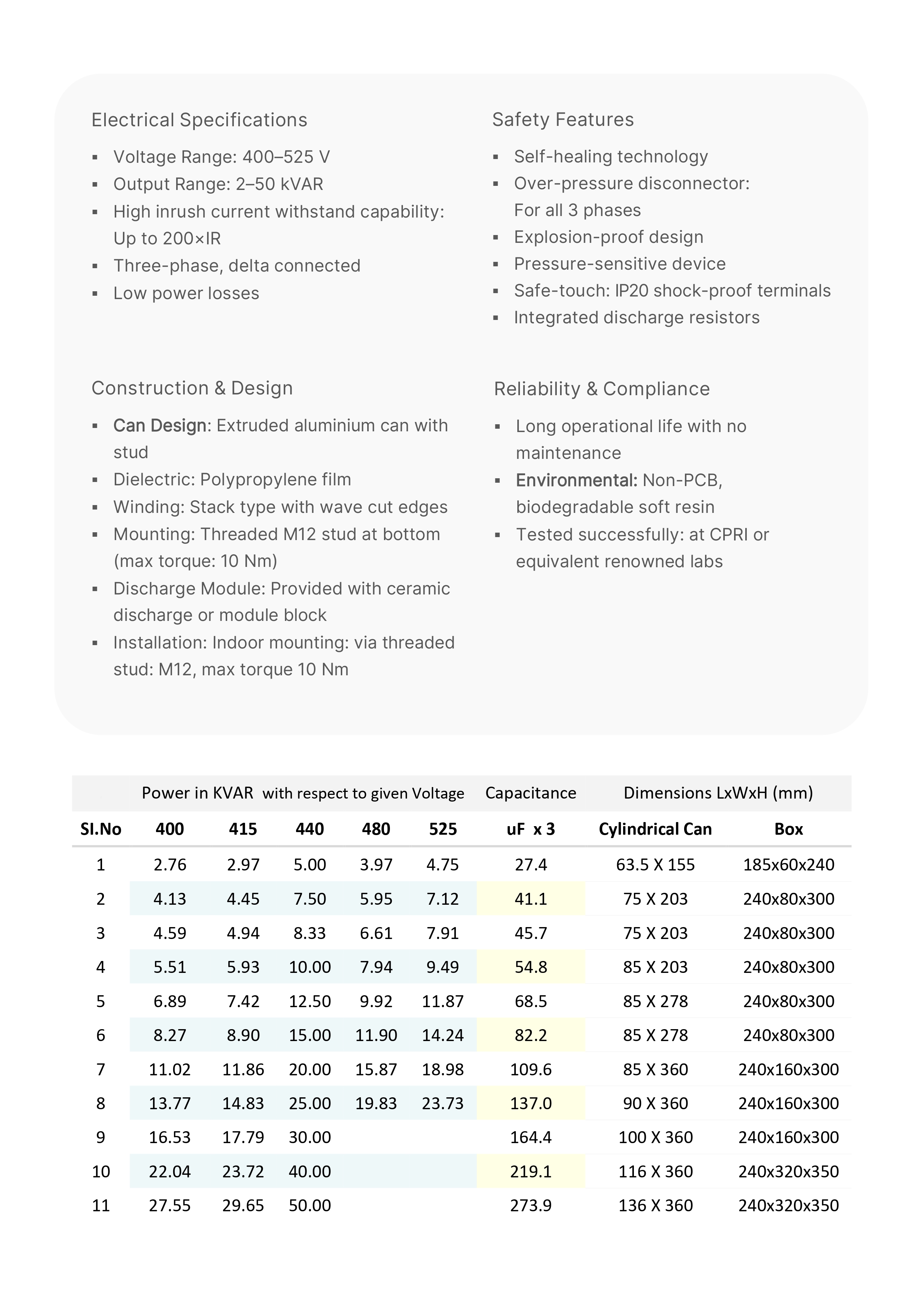

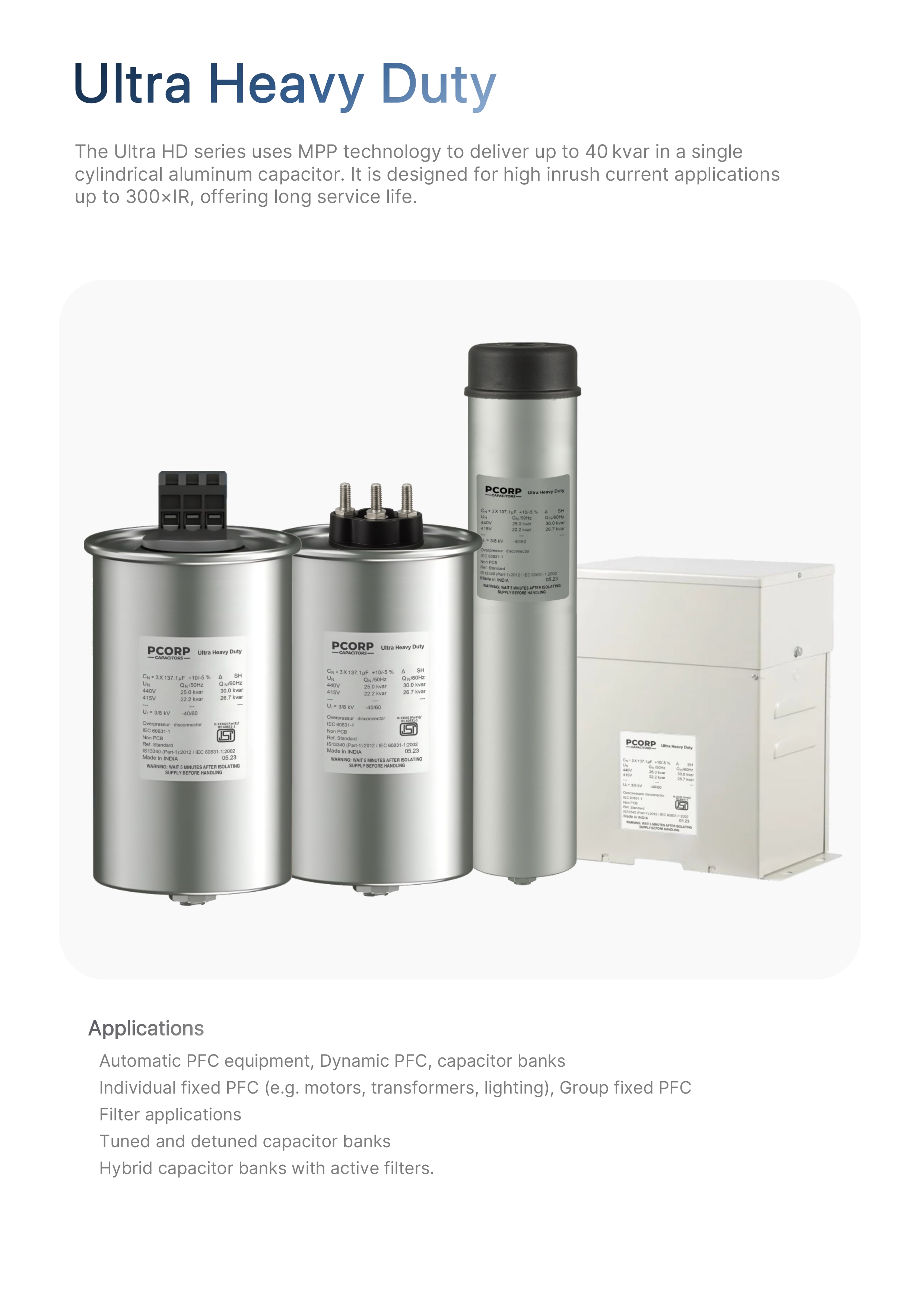

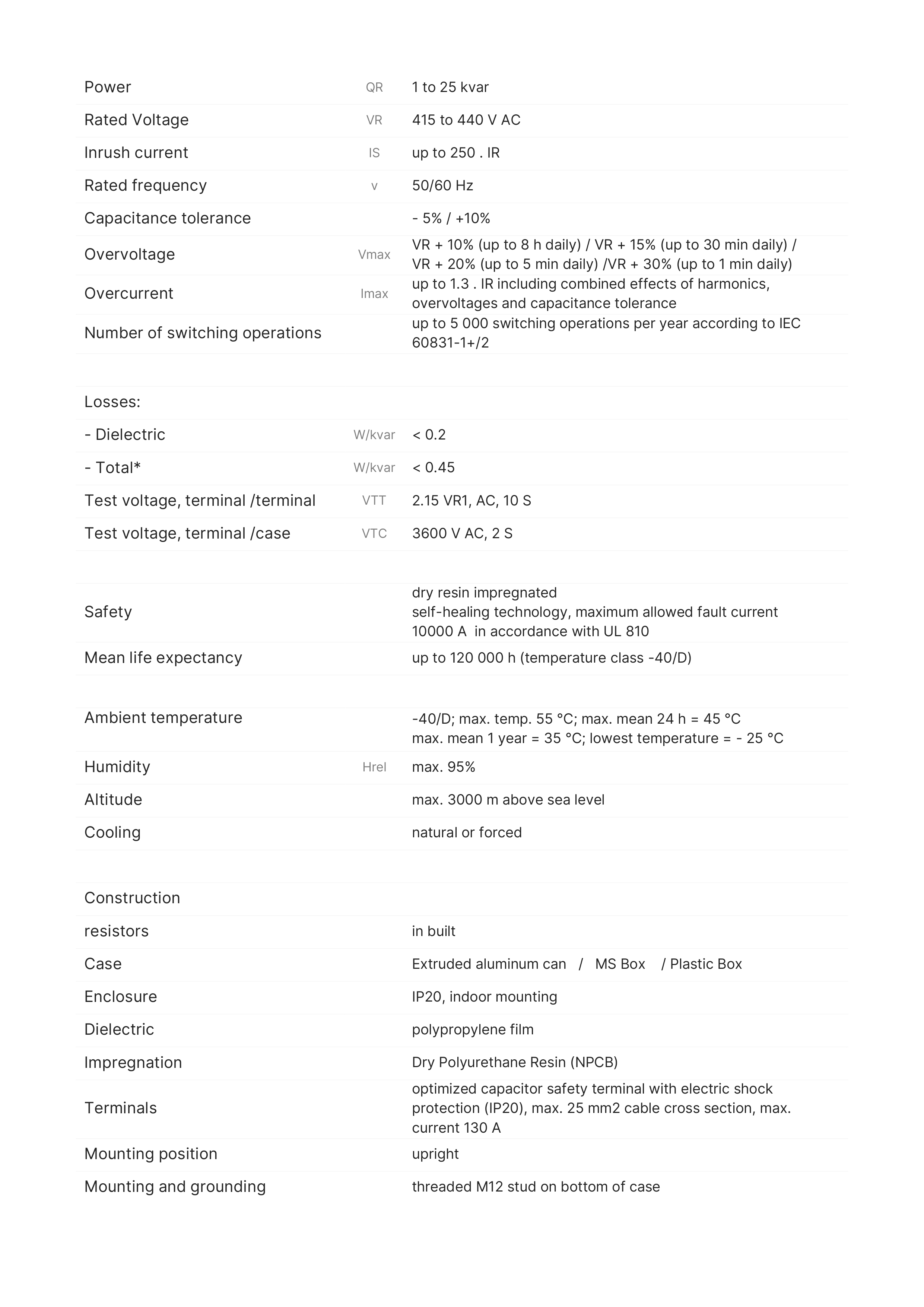

ultra heavy duty Capacitor images the uhd series uses mpp technology up to 525 volts, 300x IR inrush current capacity. long service life in demanding environments like automatic PFC equipment and active filters Ultra Heavy Duty Capacitor Specifications: Detailed electrical specifications (400-525V, 5-40 KVAR, 300xIR inrush current), safety features (self-healing, explosion-proof), construction (extruded aluminum, polypropylene film) built in disscharde resistors. Includes a KVAR, capacitance, and dimension table Ultra heavy duty technical specfication tables PCORP Heavy Duty Capacitors: The robust Heavy-Duty series, maintenance-free capacitors designed for long-lasting performance, supporting up to 50 kvar in a compact cylindrical aluminum case. Ideal for demanding applications like automatic and fixed PFC, filter applications, and hybrid capacitor banks. Heavy Duty Capacitor Specifications and a KVAR, capacitance, and dimension table: Detailed electrical specifications (400-525V, 2-50 kVAR, 200xIR inrush current), safety features (self-healing, over-pressure disconnector), construction (extruded aluminum, polypropylene film) PCORP Heavy duty capacitors technical data specfication table PCORP Standard duty capacitors improved heat dissipation Useful for commercial and industrial application harmonic loads Useful in automatic PFC individual fixed PFC Motor Transformers and filter application PCORP standard duty capacitors features And dimension table. features: electric specification voltage range 230 to 480 v volts output range 1 to 50 kvar high in rush current withstand capacity up to 200X 3 phase delta connection over pressure disconnector self healing technology safe touch IP20 terminals Standard duty capacitors specification table PCORP Agri Duty capacitors Used for agricultural applications it is a durable capacitor series delivering 50 kvar in weather resistant conditions built for reliability in hash outdoor environments. Applications image power factor improvement in agriculture application filter application capacitor banks. PCORP Agri Duty capacitors specification and features with dimension table Long life up to 100000 hours low power loss high inrush current up to 250x Up to 60 kvar Self filling technology non pcbs semi dry polypropylene film Mpp technology with excellent heat dissipation PCORP Agri duty capacitors Specification table PCORP Wind Turbine capacitors Heavy duty capacitor designed for windmill applications built to end their frequent switching operations in fluctuating wind conditions reliable and ideal performance in high wind seasons PCORP Wind turbine capacitors features and dimension table features like high in rush current voltage range up to 800 volts self feeling technology environment friendly discharge module provided stack type winding with wave cut edges M12 threaded stud for mounting PCORP Wind turbine capacitors specification table Harmonic filter and reactor detoned reactor used in power factor collection system to prevent resonance and mitigate harmonic current caused by non linear loads improving power quality and protecting equipments filter factor 5.67% 7% and 14% aluminum strip wound aluminum foil wound and copper strip wound reactors and filters Features of harmonic filter and reactor produced by PCORP high linearity low losses high overload capacity safety device for temperature protection vacuum impregnation for durability specially designed high thdv withstand reactor related voltage 380 450 440 and 690 capacitor duty contractors designed for optimal switching And absolute system protection 7 to 100 kVAR PCORP Capacitor diagrams image
